60Hz 3.3V 13.3 Inch Optical Bonding Touch Screen For Food Vending Machine
60Hz 3.3V 13.3 Inch Optical Bonding Touch Screen For Food Vending Machine
60Hz 3.3V 13.3 Inch Optical Bonding Touch Screen For Food Vending Machine 60Hz 3.3V 13.3 Inch Optical Bonding Touch Screen For Food Vending Machine 60Hz 3.3V 13.3 Inch Optical Bonding Touch Screen For Food Vending Machine 60Hz 3.3V 13.3 Inch Optical Bonding Touch Screen For Food Vending Machine
Contact Now

60Hz 3.3V 13.3 Inch Optical Bonding Touch Screen For Food Vending Machine

Price : negotiable Packaging Details : carton
Delivery Time : 5-8 days Payment Terms : L/C, T/T, Western Union
Supply Ability : 50000~100000 pieces/Month
Place of Origin: Suzhou, Jiangsu, China Brand Name: Master Touch
Model Number: MST-TPM-13.3-ILI

Detail Information
LCD Size: 13.3'' LCD Outline Dimension: 296.36*167.84mm
LCD Active Area: 293.76*165.24 Operating Frequency: 60Hz
Touch Panel Outline Dimension: 320*210mm Touch Panel View Area: 294.76*166.24mm (13.3 Inch)
TFT Thickness: 2.5mm TP Thickness: 1.1mm
High Light:

13.3in Optical Bonding Touch Screen

,

60Hz Optical Bonding Touch Screen

,

3.3V 13.3 Inch Touch Screen

Product Description



Master Touch 13.3 Inch Optical Bonding Touch Screen for Food Vending Machine



1. Product Description



Master Touch 13.3 inch touchable LCD display screen suiting to self-service currency counter is the lamination of touch panel and the LCD module through optical bonding technology with OCA or LOCA (Whether OCA or LOCA is chosen depends of the application of the product or the LCD used.) that fills air gaps between components in LCD displays and the touch panel.



Why OCA adhesives are ideal for display applications?

  • High light transmission when corrected for reflection losses
  • Non-birefringent when removed from carrier film
  • High temperature, humidity, and UV resistance
  • Long term durability without yellowing, delaminating, or degrading



2. Genaral Specification



2.1 LCD



Size 13.3 inch
Resolution -
Outline Dimension 296.36*167.84
Active Area 293.76*165.24
Viewing Direction ALL
Operating frequency 60Hz
Driving Voltage 3.3V (Typ.)
TFT thickness 2.5mm



2.2 Touch Panel



Outline Dimension 320*210 mm
View Area 294.76*166.24(13.3 inch) mm
TP thickness 1.1 mm
Total 4.9 mm
Touch IC ILI2511 --
Number of touchpoint 10 points
Number of button -- -

Interface information driven plate

 IIC -
The active information -- --
The type of Bonding with LCD Optical bonding
Operation Temperature -20℃~70℃ ℃

Storage

(cannot exceed 6 months)

Temperature: 23±3℃ (Before installation)

Humidity:40%~70%RH

 ℃
Temperature: -30~80℃ (After installation) ℃

2.3 Optical Spec.

Item

Content
Transparency 85±10%



2.4 Electrical Spec.



ESD Touch Side (Touch) 4kv
ESD Touch Side (Air) 8kv



3. Reliability



Item Specifications Remark

High Temperature Operation

 70ºC, 48hrs --
Low Temperature Operation -20 ºC, 48hrs Non-condensing

Operating Temperature/ Humidity

 60ºC/90%RH, 500hrs Non-condensing
Thermal Shock

-30 ~ 80℃, 60 mins/cycle, total

48 cycles

 --



4. Drawing



60Hz 3.3V 13.3 Inch Optical Bonding Touch Screen For Food Vending Machine 0



5. Inspection



Equipment/materials: light box, ion fan, humidifier, film card, alcohol/ethyl acetate, finger cover, dust-free cloth, Vernier/digital caliper.

Inspection environment: 30cm ± 5cm from the product, temperature: 22 ± 2 ℃; humidity: 40% ~ 70% RH; cleanliness: Level 10000.

Inspection angle: vertical rotation angle: ± 30 °, from top to bottom; horizontal rotation angle: ± 30 °, from left to right.

Inspection illuminance: fluorescent lamp inspection area illuminance: 150

0-1800lux; table lamp inspection area illuminance: 1500-1800lux; It is convenient for internal uniform illumination requirements.

Background color: Black/white.

Inspection time: the inspection time of one piece of product shall not exceed 15 seconds.



60Hz 3.3V 13.3 Inch Optical Bonding Touch Screen For Food Vending Machine 1

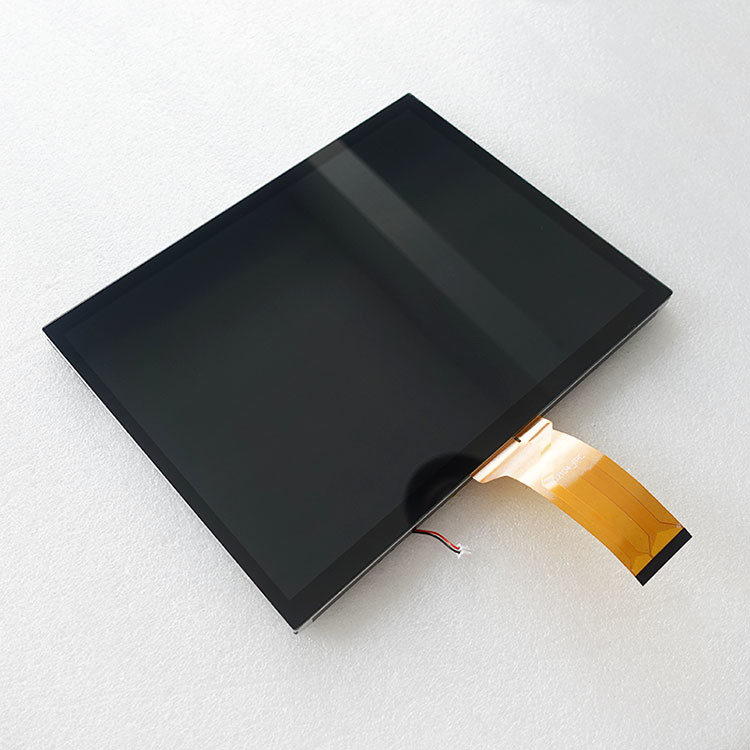

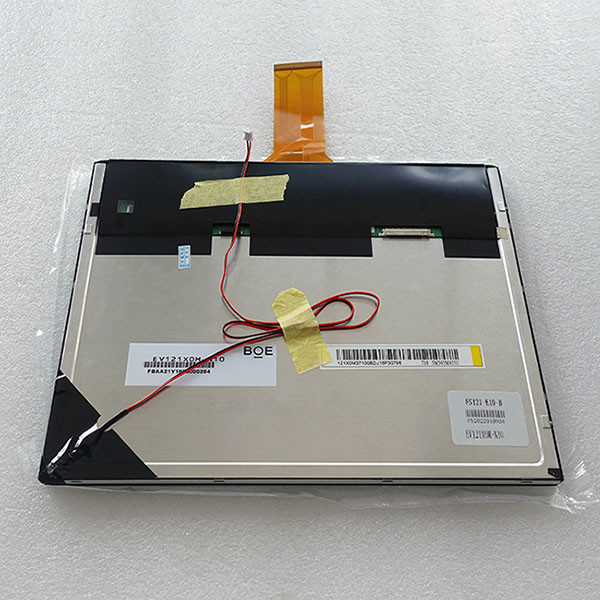

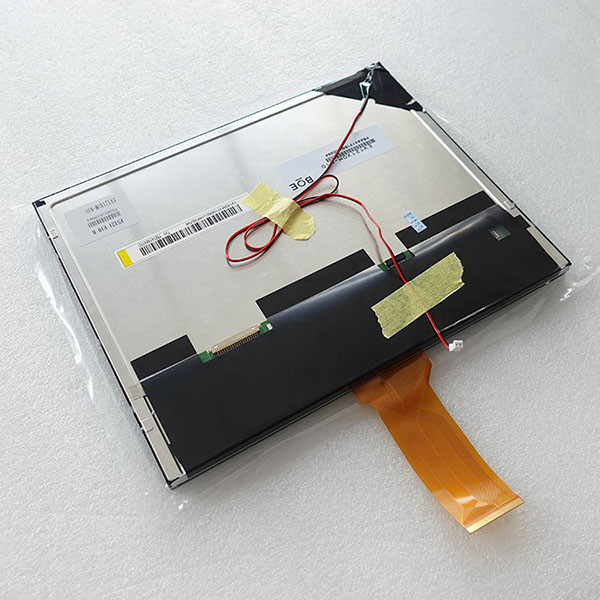

6. Details



60Hz 3.3V 13.3 Inch Optical Bonding Touch Screen For Food Vending Machine 2



7. FAQ

60Hz 3.3V 13.3 Inch Optical Bonding Touch Screen For Food Vending Machine 3
