TX23 RX31 10.4 Inch MST Capacitive GG Touch Panel 85% Transparency

Price : $40-45/piece Packaging Details : carton
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 50000~100000pcs/Month
Place of Origin: Suzhou, Jiangsu, China Brand Name: Master Touch
Model Number: MST-GG-TPB-10.4-ILI

Detail Information

Touch Point: 10 Operating System: Android/ Linux/ Windows
Touch Technology: Pcap (projected Capacitive) Controller: ILI2511
Channel: TX: 23 RX: 31 Operating Temperature: -20~80 ℃
Storage Temperature: -30~80 ℃ USB Cable Length: 1 M
Communication: USB
High Light:

GG Touch Panel 85% Transparency

,

TX23 GG Touch Panel

,

RX31 10.4 inch touch screen Panel

Product Description



10.4 Inch 10 Touch Points MST Capacitive GG Touch Panel with 85% Transparency



1. Product Description



MST G + G Capacitive Touch Panel is made of a surface tempered glass and a ensor glass with Pcap technology. Capacitive touch panel works through body's current induction .When finger is on or close to touch panel surface,due to body electric field, the user and touch panel surface forms one coupling capacitance. For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal, the controller works out the touch point position.



2. Basic Features



Item Feature Remarks
Controller ILI2511 -
Channel TX: 23 RX: 31 -
Power 5V USB: 4.7V ~ 6.0V, Typical:5V
Communication USB USB: 2.0 Full Speed
Number of Touch point 10 -
O.S.  Windows/ Android/ Linux plug and play
Power Consumption

1.Active Mode: Max.120mA @ USB Input 5V

2.Idle Mode: 90mA @ USB Input 5V

3.Sleep Mode: less than 1mA @ USB Input 5V


3. Mechanical Characteristics

Item Specification Unit
Viewing Area

211(L)×158.4(W)

mm
Cover Lense O.D.

259.2(L)×206.4(W)











4. Optical Characteristics



Item Specification
Transparency Viewing Area ≧85%

5. Sensor Specification

Item Specification  Unit
Stacked structure Cover 1.1 mm
LOCA 0.2 mm
ITO 0.7



mm



Sensor Glass
ITO
Sensor Dimension OD Size X 228 mm
Y

173.43

mm


6. Drawing

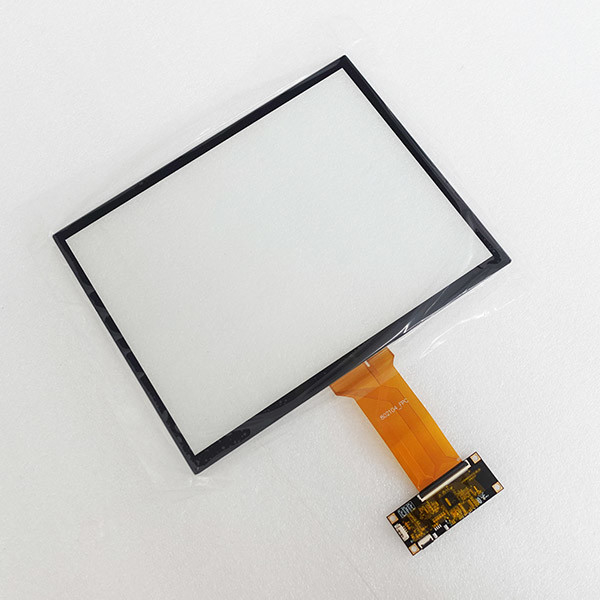

TX23 RX31 10.4 Inch MST Capacitive GG Touch Panel 85% Transparency 0



7. Details

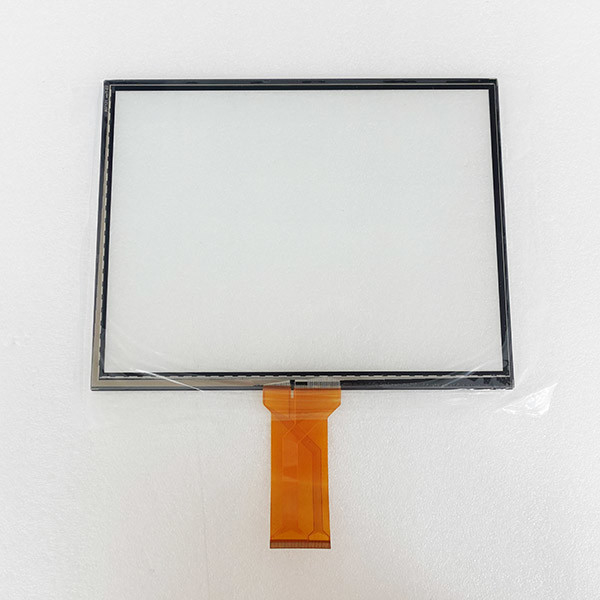

TX23 RX31 10.4 Inch MST Capacitive GG Touch Panel 85% Transparency 1



8. Related Test



Item Specification Result
Cover lens Ball Drop

200g ± 2g
35cm

One drop test on each of the 5 selected points, No damage

Hardness

Pencil: 6H
Pressure: 1N/45°
Hardness ≧ 6H
Warpage By Gauge Warpage 0.1% ≦ Length *
FPC/COF

Bending Bending range0-180° 30times
Electrical Function ok
-


9. Reliablility Test



Reliability test report
Objects

□Raw material □New production process  □Abnormal item
□New product □Finished product □Sample
□Experiment procedure and method □Others
□Production line program
Purpose: to verify the applicability of the experimental product when being stored,transported and used under the extreme environmental conditions.

Experiment requirements:


①Before the experiment, make sure the functions of the product must be good,while the cosmetic may be good or non-good according to the purpose of the experiment.

②If it is necessary to do the experiment again,make sure all materials must be put in the same room for at least 2hrs and make sure that there is no water vapor on its surface.

③It is prohibited to open the door before we finish the whole experiment.

④The product is requested to be kept for more than 1 years,after the experiment.



No. Items Test condition Criterion
1 High temperature and humidity test 1. Temperature: 60℃
2. Humidity: 90%RH
3. Time: finished product 120H

Appearance test refer tostandard OK

Function detection OK

2 Temperature Switching impact test 1.High temperature
2.Low temperature
3. 30 times in cycle
Appearance test refer tostandard OK
Function detection OK
3 Salt spray test 1.Concentration: 5% NaCl solution
2.Temperature: 35℃
3.Time: finished product 48H
Appearance test refer tostandard OK
Function detection OK
4 High temperature storage test 1.Temperature: 80℃
2.Time: 120H
Appearance test refer tostandard OK
Function detection OK
5 Low temperature storage test 1.Temperature: -30℃
2.Time: 120H
Appearance test refer tostandard OK
Function detection OK
6 Red ink test 1. Room temperature
2. Time: 8H
1. No ink infiltration
2. All functions are good
7 Hand sweat test 1. Sweat PH=4.7
2. Time: 48H
Appearance test refer tostandard OK
Function detection OK
8 Static electricity test 1. Air discharge: 8KV
2. Contact discharge: 6KV
3.Times: 10 times for each point
Appearance test refer tostandard OK
Function detection OK


10. FAQ

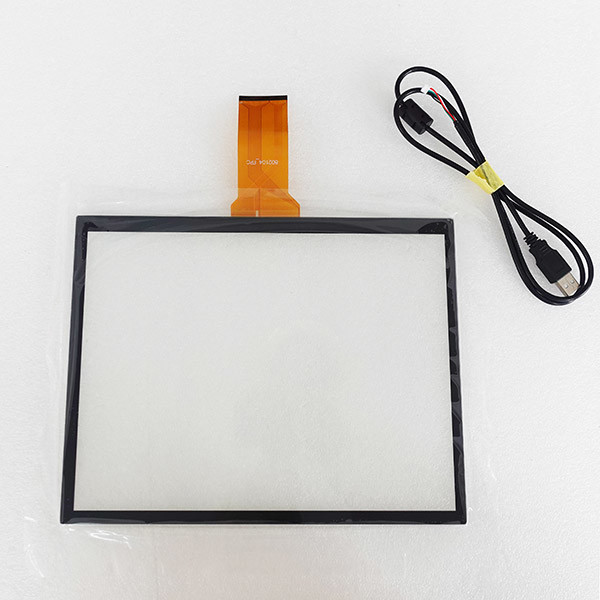

TX23 RX31 10.4 Inch MST Capacitive GG Touch Panel 85% Transparency 2
